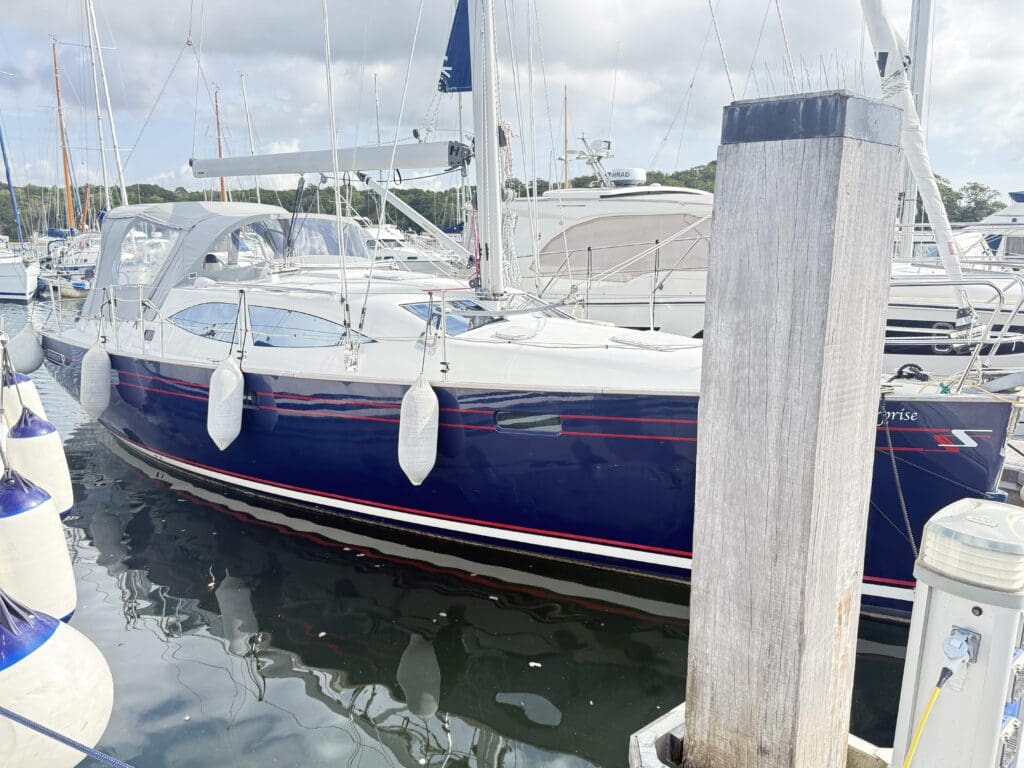

Manufacturer Provided Description

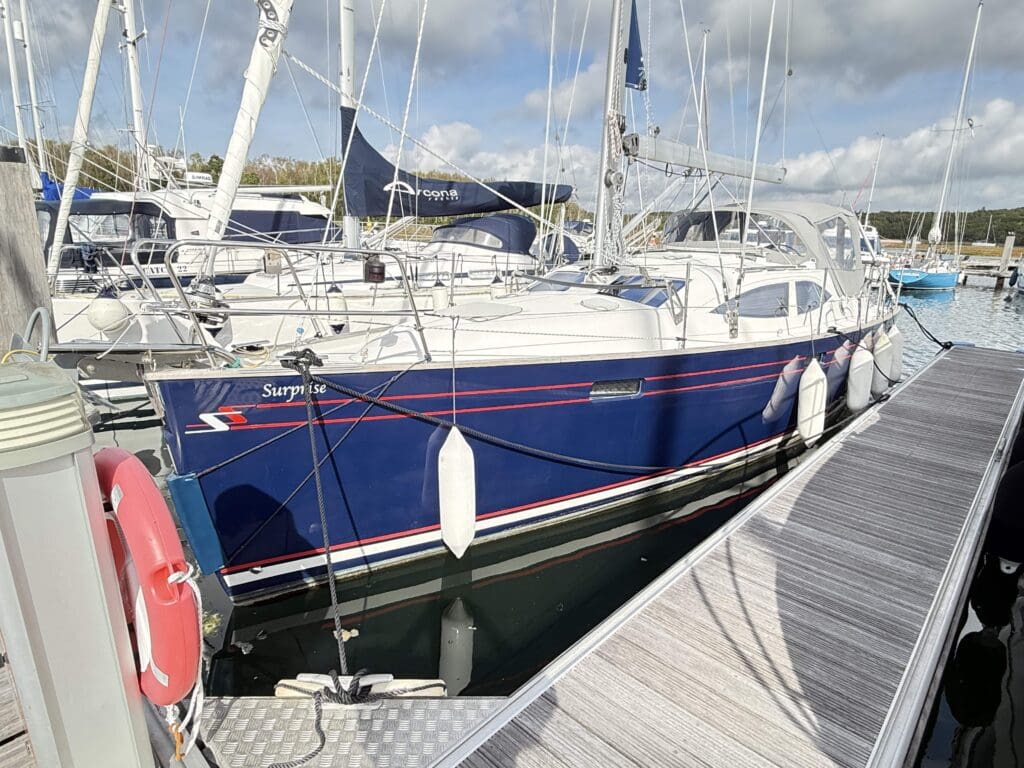

The perfect small yacht for family cruising…great performance, self tacking jib for easy sailing, comfortable cockpit and spacious interior. Designed by Stephen Jones.

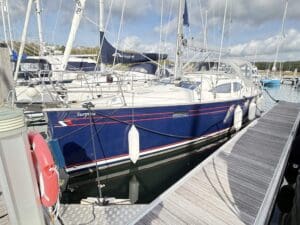

CONSTRUCTION HULL

• Oxford blue gel coat
• Red & ivory white boot top & red style lines

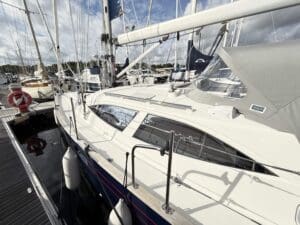

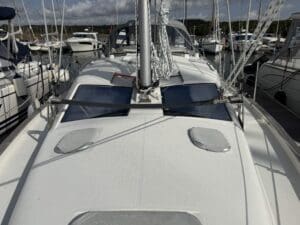

DECK

• Ivory White gel coat
• Teak capping rail to hull to deck joint up-stand
• Moulded non-slip finish to deck
• Access to chain locker from foredeck

VARIABLE DRAFT KEEL

• The fixed ballast is an iron casting which acts as a grounding plate and as transverse stiffening for the keel unit. It is fitted into a recess in the hull in the area of the keel box with stainless steel bolts.
• The aerofoil Variable Draft is cast iron and incorporates a stainless steel pivot at the leading edge.

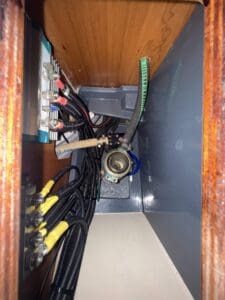

• The Variable Draft is raised and lowered by a hydraulic ram powered by an electrically driven pump with a hand operated back-up.
• All hydraulics are easily accessible for maintenance.
• Keel sandblasted and epoxy treated together with an additional anode attached to grounding plate (2023)
• Keel control and gauge showing keel position fitted at wheel pedestal.
• Removable stainless steel pin, to enable the keel to be locked in the ‘up’ or ‘down’ position

GENERAL INTERNAL FITOUT

• Interior joinery is finished in solid American Cherry and marine . faced quality plywood
• Linings are fabric covered plywood or GRP as appropriate
• Cabin soles are teak striped non-slip laminate
• Curtains are fitted to hull ports
• Concertina blinds fitted to saloon coachroof windows
• Main deck hatches fitted with roller blinds and fly screens

ACCOMMODATION

• Four berths with two in the fore cabin and two in the aft cabin
• Additionally, their are two further berths for occasional use in the saloon

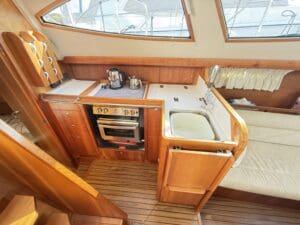

GALLEY

• Galley to port
• Stainless steel sink
• Hot and cold pressurised water
• Corian type worktop, Aspen Glacier
• Folding worktop extension with fiddles

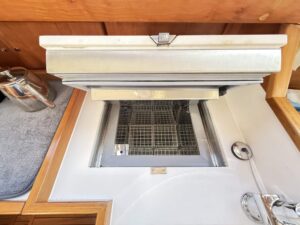

• Top loading refrigerated ice box (75 litres)
• Stainless steel grab rail to worktop
• Fully gimballed gas cooker with two burners, grill and oven (fail-safe devices on all burners)
• Gas cut off tap
• Gas alarm fitted
• Waste bin

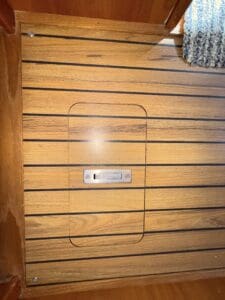

• Removable waste/storage bin added beneath small sole hatch
• Crockery stowage
• Cupboards for utensils and food
• Sliding plastic doors replaced with cherry veneer doors to match existing joinery
• Cutlery drawer fitted with bespoke cutlery trays
• Opening hatch
• Overhead light

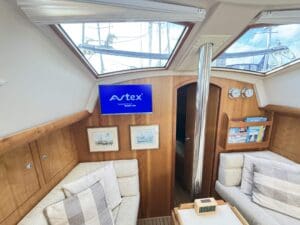

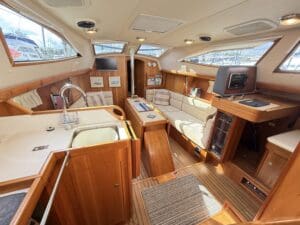

SALOON

• Full length single settees to port and starboard with lockers/water tank under
• Two lockers forward
• Stowage under
• Fixed central table with hinges leaves

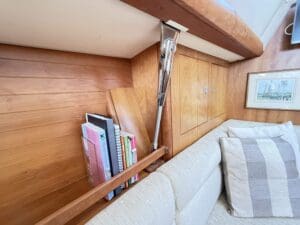

• Stainless steel mast support
• Recessed lights under side decks
• Two overhead lights
• Two fixed hull port lights
• Opening hatch
• Starboard side bilge converted to cool large storage locker (liners easily removed foraccess to bilge)

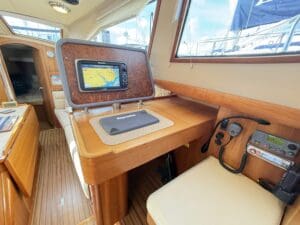

NAVIGATION AREA

• Chart table to starboard with excellent visibility
• Instrument console forward of chart table
• Chart stowage under hinged lid
• Seat modified to include under cushion chart storage with cherry wood veneer surround
• Large stowage cupboard below
• Chart light

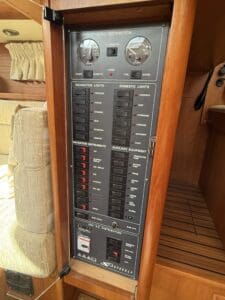

• Main switch panel
• Overhead deck light
• Opening hatch

AFT CABIN

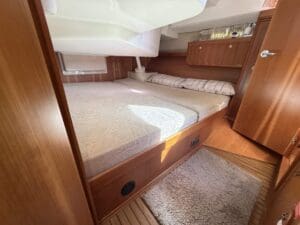

• Large double berth offset to port with under berth storage
• Two lockers, hanging and shelved Wardrobe
• Two reading lights
• Two overhead lights
• Two opening ports, one to cockpit, one to outboard
• Fixed hole port
• Door to en-suite facilities
• Access to stern gear

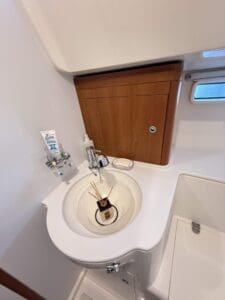

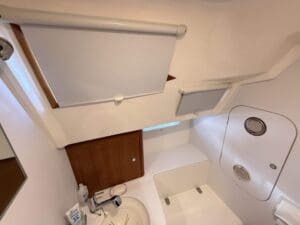

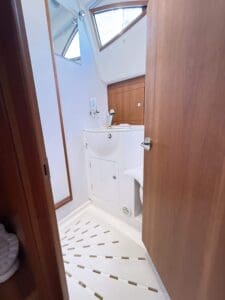

HEADS

• Heads compartment to starboard of companionway
• Marine w.c
• Hinged seat to cover marine toilet
• Washbasin with Corian type surround, locker under sink storage
• Shower head/mixer tap
• Hot and cold pressurised water
• Electric shower pump
• Grating to shower tray
• Mirror
• Two Fixed hull ports
• Opening port light
• Waterproof toilet roll holder

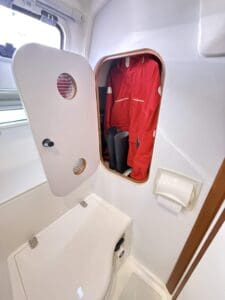

• Oilskin stowage locker

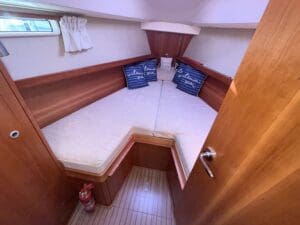

FORECABIN

• V berths with infill panel to convert to a double berth
• Stowage under
• Full length shelves to port and starboard
• Two lockers, both with shelves
• Access to chain locker through forward bulkhead
• Two fixed hull ports
• Three opening deck hatches
• Two overhead lights
• Two reading lights
• Curtains

ENGINE

• Yanmar 3YM30 29 hp (21kw), 3 cylinder, fresh water cooled, diesel engine
• Reduction/reverse gear
• amp alternator 80
• Bronze stern tube with water lubricated stern gland
• Stainless steel propeller shaft
• Three bladed FeatherStream feathering propeller with stainless steel blades
• Substantial skeg fitted on centreline to protect propeller and rudders when yacht is dried out
• Non metallic fuel tank in sail locker – capacity 137 litres/30 gallons, with sediment trap and line filter
• Non-metallic water strainer with removable filter
• Volt electric ventilator 12
• Sound deadening to engine box
• Panels around of engine box for access and maintenance
• New water pump fitted in 2025 service by Dave Crawford marine

ELECTRICS

• Volt system 12
• Three heavy duty batteries, charged from engine alternator; one for engine, two for domestic use
• Isolating switches
• Cabin lighting throughout
• Reading lights over bunks (back cabin reading lights replaced with LED touch operated fittings)
• Chart light over navigation table
• Full navigation light system incorporating bow lights, stern light masthead tri-colour light with all round white anchor light, deck flood light and steaming light replaced
• Circuit breakers on main panel
• 240V ring main with double sockets in galley, saloon and aft cabin, fitted with earth leak circuit breaker and shore power connection
• 1Kw immersion heater fitted to calorifier

WATER SYSTEM & PUMPS

• Pressurised hot and cold water system
• Mixer tap to galley sink
• Mixer tap in heads compartment
• Non-metallic fresh water tank under port aft end of saloon seating – capacity 165 litres/36 gallons
• Hot water provided by engine calorifier unit
• Electric sump pump to shower tray
• One manual bilge pump
• One electric submersible bilge pump

ELECTRONICS AND NAVIGATION

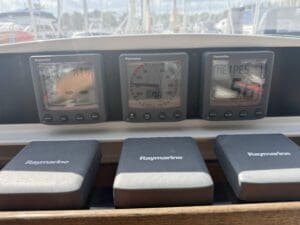

• Raymarine ST60+ wind, speed and depth indicators in panel above companionway
• Raymarine E95 Hybrid touch display fitted at Nav Station
• Raymarine 18″ scanner and bracket fitted at mast Replaced with Quantum Q24C 18” scanner
• .Raymarine SPX10 Smart Pilot autopilot with ST6002+ display in cockpit
• Raymarine RAY55E VHF radio fitted at nav station with external speaker and 2nd handmike fitted at helm
• Comar AIS receiver and transponder
• Digital Yacht WLN20 AquaWear Wireless NMEA server (Enables Navionics and all other data on tablet / Laptop / phone Handheld VHF radio (New) plus old spare

STEERING

• Semi-balanced twin rudders

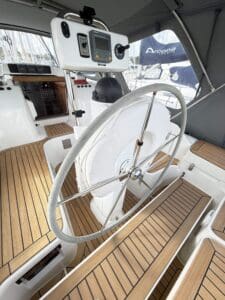

• Pedestal mounted 36’’ stainless steel cockpit wheel with hide cover
• Whitlock Cobra system
• Single lever engine control
• Emergency steering system
• Compass guard and 6 inch main steering compass

ADDITIONAL EQUIPMENT

• 42Kg Bow thruster
• Stripper Rope cutter fitted to shaft
• Ererspacher hot air heating system with four outlets in aft cabin, shower/toilet, saloon and forecabin
• Radio/CD/ MP 3 stereo system with 2 speakers
• TV replaced with Avtex L199DRS-PRO with built in freeview and DVD player
• Glomex aerial fitted to mast
• Clock and barometer (Weems & Plath) fitted to forward bulkhead

SPARS & RIGGING

• Selden in-mast furling
• Self tacking jib
• Double swept back spreaders
• Selden anodised aluminium spars, finished in silver
• 1×19 stainless steel wire standing rigging with swage toggle-fork chrome bronze rigging screws
• Furlex headsail reefing system
• Solid kicker
• Kicker, mainsheet, main halyard, outhaul, topping lift, continuous furling line for mainsail and jib sheet all lead aft
• Jib halyard, code zero and gennaker halyards at mast
• Burgee and signal halyards
• Sail controls led aft across pilot house
• Lewmar 16ST winch on mast
• Backstay with manual tensioner
• Removable stainless steel bowsprit
• Seized Deck organisers replaced
• Stanchion organisers for code 0 furling line

SAILS

• 2024 Hyde Furling Jib (only used on a few summer day trips since purchased)
• 2024 In Mast Furling Hyde Mainsail (only used on a few summer day trips since purchased)
• Code zero
• G3 Gennaker

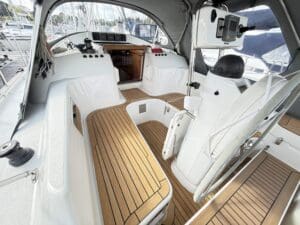

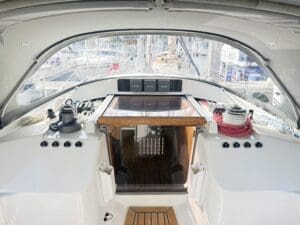

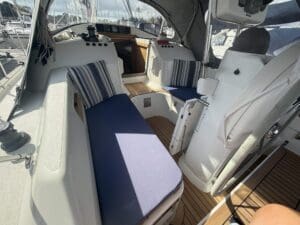

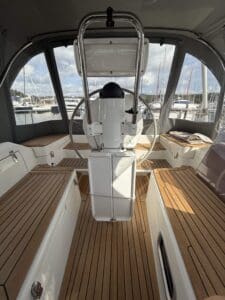

COCKPIT

• Self draining
• Laid teak to cockpit seats and cockpit sole
• Access aft for boarding through transom door
• Telescopic stern boarding ladder
• Custom removable steering platform to match existing teak
• Deep lazarette locker to starboard
• Drained gas bottle stowage to port
• Cave locker in cockpit coaming
• Perspex main hatch with washboard
• Instrument panel above hatchway
• Two winch handle pockets
• Steering pedestal
• Windlass control and external VHF handset on pedestal
• Two safety harness eyes
• Locker to starboard

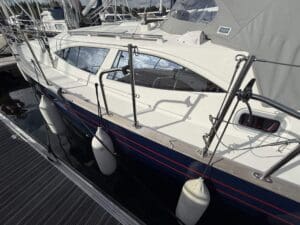

DECK FITTINGS & LOOSE GEAR

• Cleats forward and aft
• Spring cleats amidships
• Stainless steel stem head fitting with twin bow roller
• GRP foredeck anchor locker with reinforced shelf for anchor windlass
• Stainless steel pulpit incorporating navigation light bracket
• Stainless steel stanchions and guardwires with midship gates port and starboard
• Stainless steel pushpit incorporating stern gate, navigation light bracket and ensign socket
• Fuel and water deck fillers
• Self tacking foresail track with sheet to cockpit
• Mainsheet track with control lines leading aft to cockpit
• Four rope clutches on each side, for running rigging
• Two Lewmar 30ST winches at companionway
• Two Antal XT16 winches for code zero and gennaker
• Two Selden PBB60 Quick Lock cheek blocks (single to starboard and double to port for Code 0 and jib furling line)
• Stainless steel grab handles on either side of coachroof

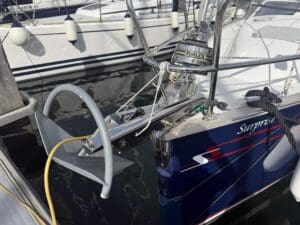

• Quick Crystal 1000 Windlass
• 15kg Rocna anchor
• 60 metres 8mm DIN766 Grade 40 Calibrated Chain
• Spare Fortress anchor FX11 with chain and nylon rode

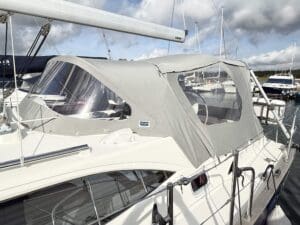

• TecSew High specification cockpit enclosure and sprayhood with hide covered grab-bar (Recently replaced and only used in summer months (Old cover used from October to April
  and included if required)
• 6 man liferaft (unserviced)
• Horseshoe lifebuoy
• Deck shower with hot and cold water fitted to transom
• Two fire extinguishers (in need of service) & One fire blanket
• White cockpit table fitted to steering pedestal
• Wire jackstays replaced with removable webbing jackstays
• Bosuns chair
• Motor sailing cone and Anchor ball
• 3D tender and Torquedo electric outboard (both only used a few times)
• Fitted cockpit cushions
• Hatch Covers
